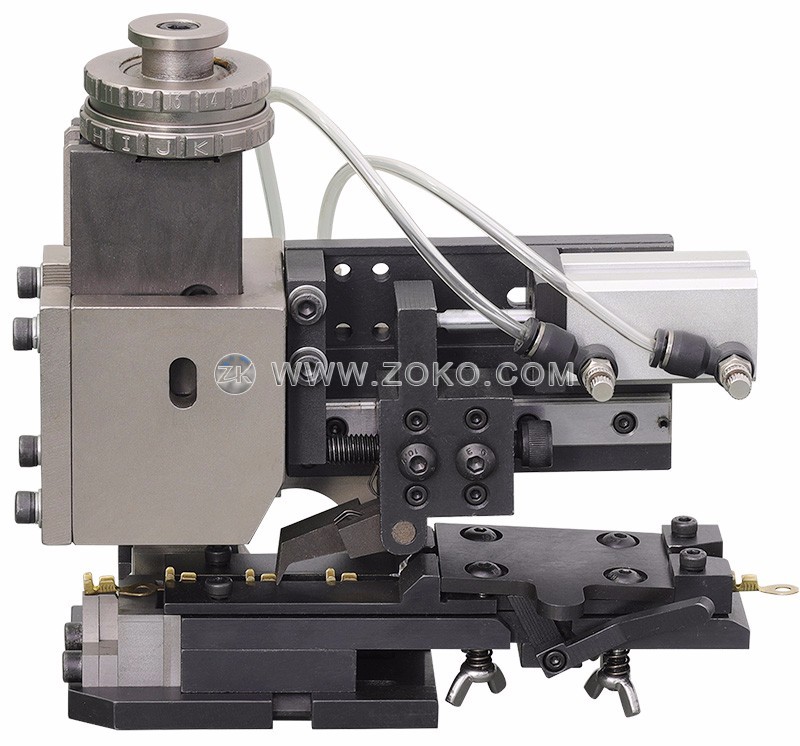

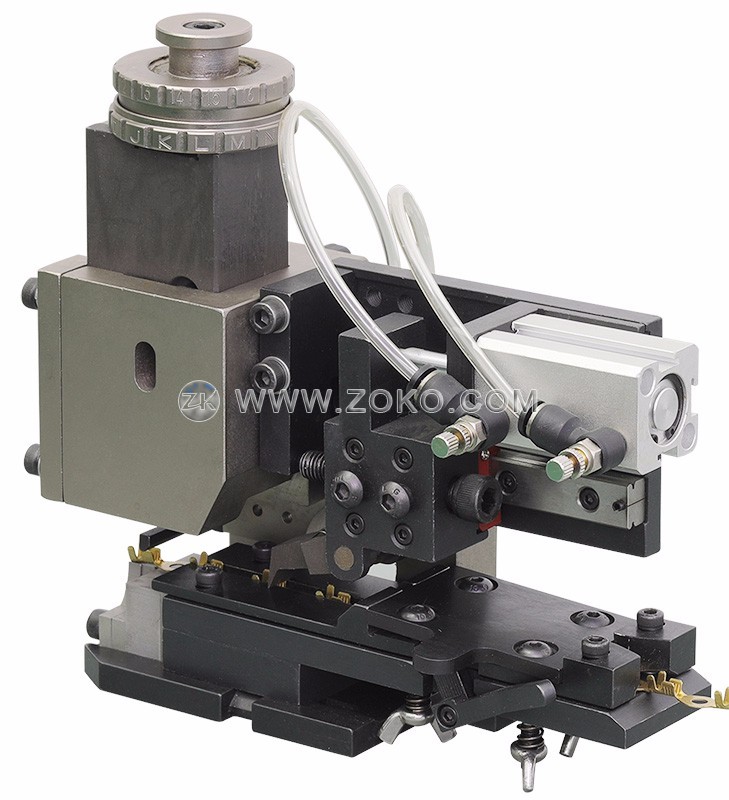

Pneumatic Crimping Applicator for End Feed Terminals

  • Model：KS-KP40R
  • Brand：KINGSING
  • Voltage：220V (Can be customized)
  • Function：
  • Price：
Online Inquiry

The terminal crimping applicator is designed for processing straight feeding reeled terminals, when installed in press machine they provide the most efficient method of applying chain terminals to a pre-stripped wire. Due to the high quality durable design, it's suitable for use on automatic terminating machines as well as benchtop crimping presses. This applicator is designed with an indexed rotary head for reproducible, independent crimp height adjustment of both the wire and insulation.

Terminal Type: end feed reeled terminals
Terminal Pitch: Max. 30mm
Terminal Thickness: 1.2mm
Feed Type: pneumatic feed
Wire Cross Section: 10mm2 (AWG 8)
Press Stroke: 40mm
Crimping Height (Shut Height): 135.8mm
Crimp Height Adjustment: 0.01mm resolution, 2.7mm range
Net. Weight: 5Kg
Dimension: 190×100×150mm
