  3. Chinese 30mm Stroke

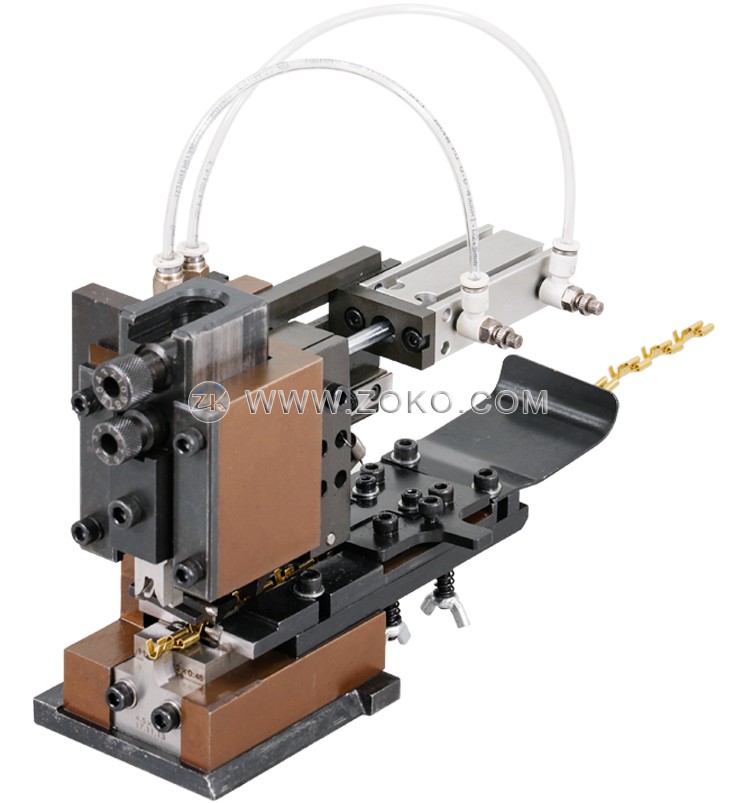

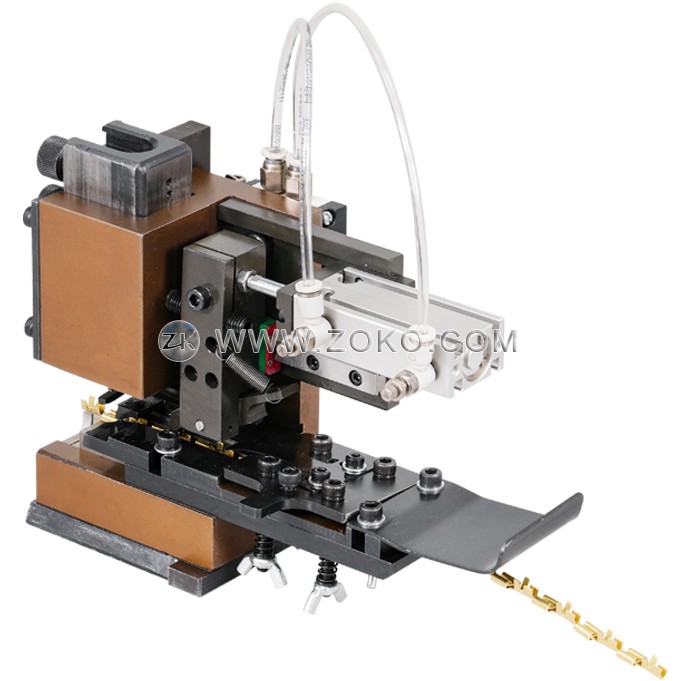

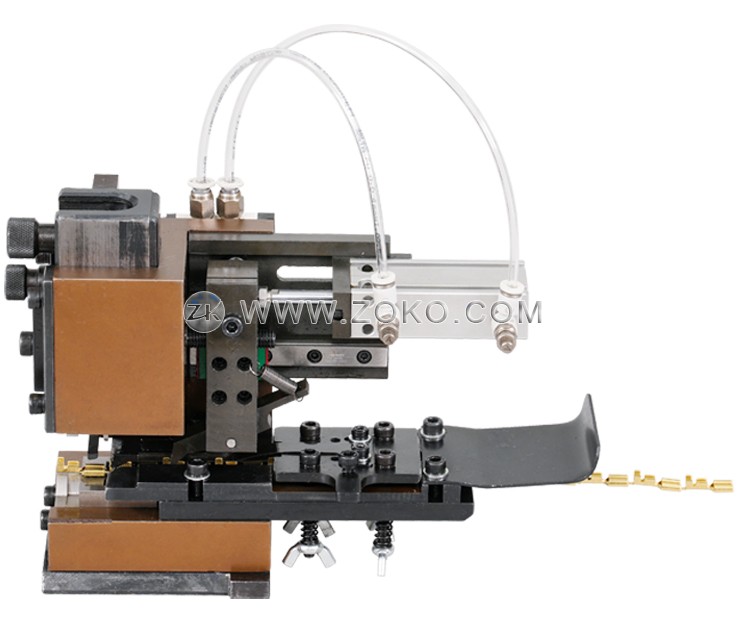

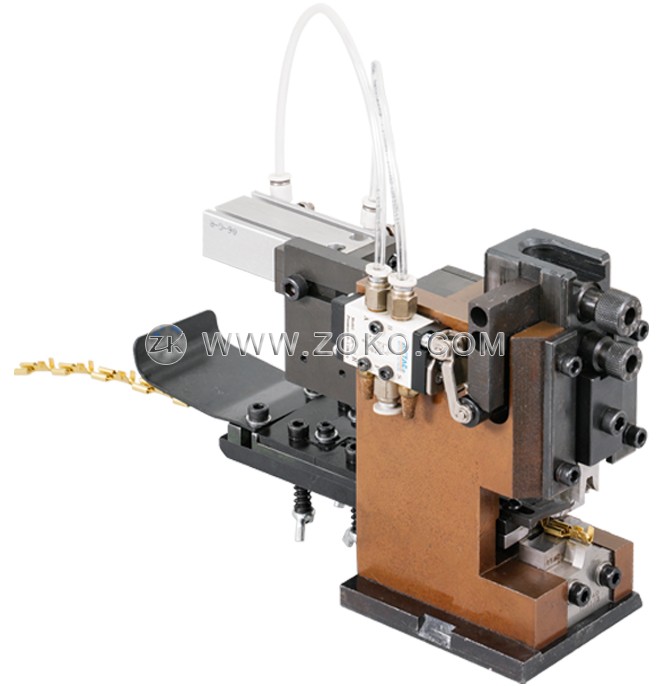

Pneumatic End Feed Terminal Crimp Applicator

  • Model：KS-CP30R
  • Brand：KINGSING
  • Voltage：220V (Can be customized)
  • Function：
  • Price：
Online Inquiry

The terminal crimp applicator with pneumatic feed system has been developed especially for processing terminals linked "end to end" rolled over a reel. It is designed with an indexed rotary head for reproducible, independent crimp height adjustment of both the wire and insulation.

Terminal Type: rear feed reeled terminals
Terminal Pitch: Max. 40mm
Terminal Thickness: 1.2mm
Feed Type: pneumatic feed
Wire Cross Section: 10mm2 (AWG 8)
Press Stroke: 30mm
Crimping Height (Shut Height): 119.7mm
Crimp Height Adjustment: 0.01mm resolution, 2.7mm range
Net. Weight: 4.5Kg
Dimension: 225×85×165mm
