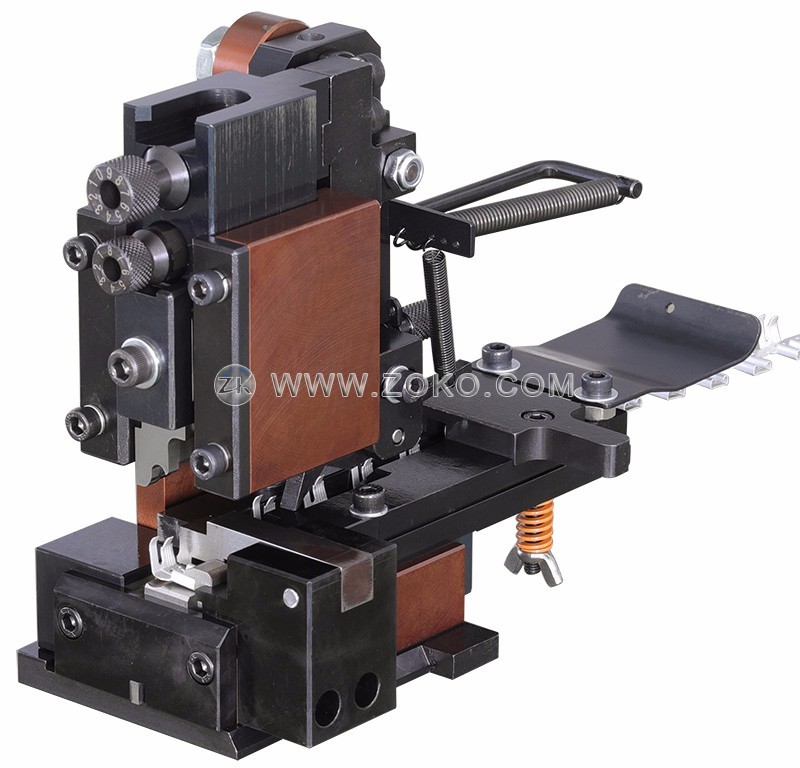

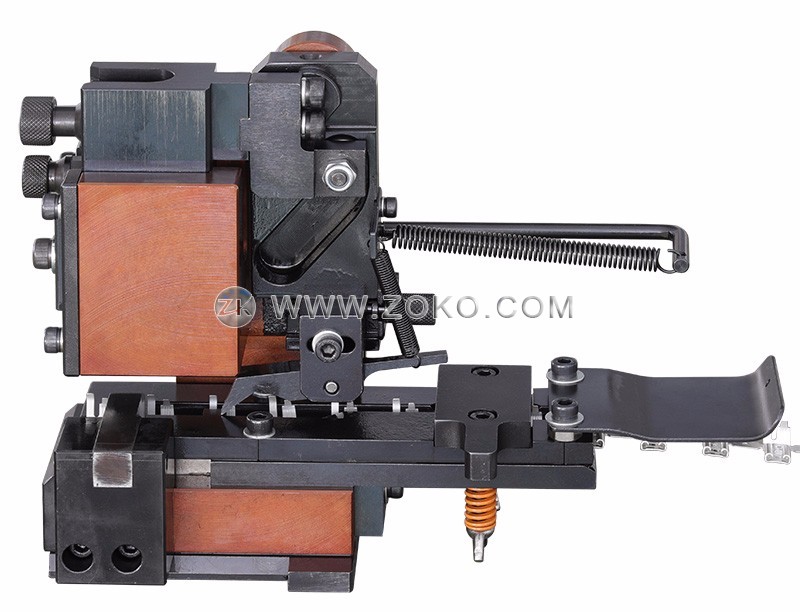

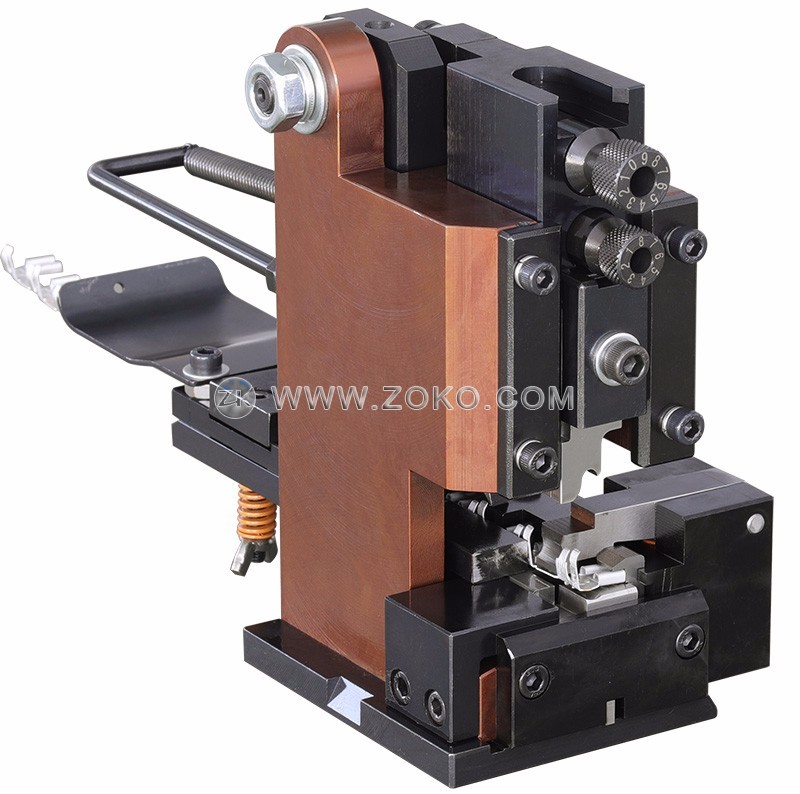

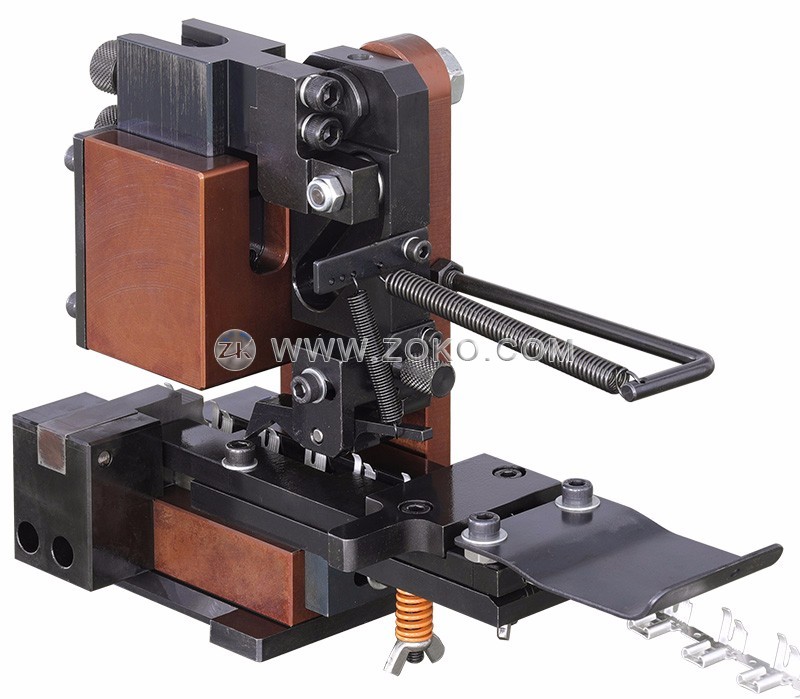

Flag Terminal Crimp Applicator for Semi-automatic Crimping Machine

  • Model：KS-CM30FM
  • Brand：KINGSING
  • Voltage：220V (Can be customized)
  • Function：
  • Price：
Online Inquiry

The flag terminal crimp applicator is the ideal solution for crimping reeled flag terminals, it can be used in both manual (for bench-top press) and automatic (for cut and strip machine) configuration. Due to the high quality durable design, this applicator is suitable for high volume operation.

Terminal Type: flag type reeled terminals
Terminal Pitch: Max. 27mm
Terminal Thickness: 1.2mm
Feed Type: mechanical or pneumatic
Wire Cross Section: 10mm2 (AWG 8)
Press Stroke: 30mm
Crimping Height (Shut Height): 119.7mm
Crimp Height Adjustment: 0.01mm resolution, 2.7mm range
Net. Weight: 5Kg
Dimension: 230×85×165mm
