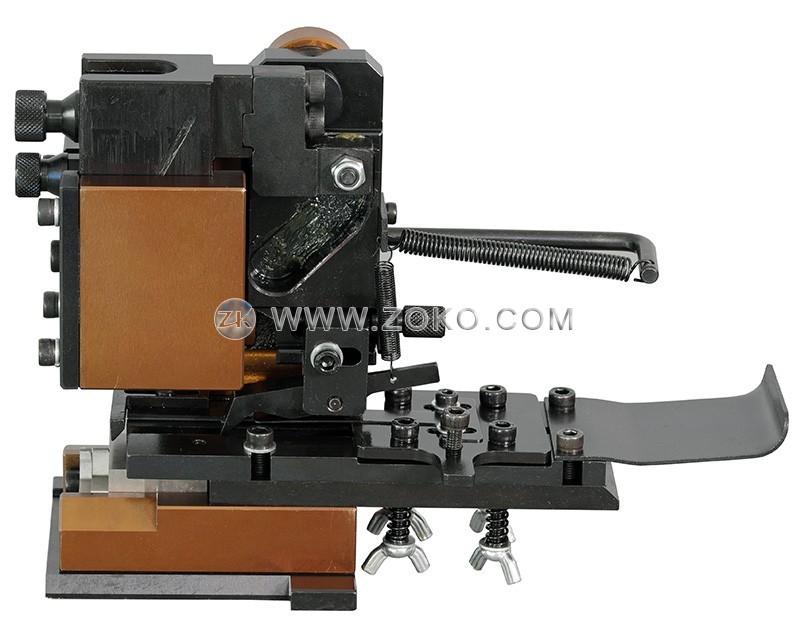

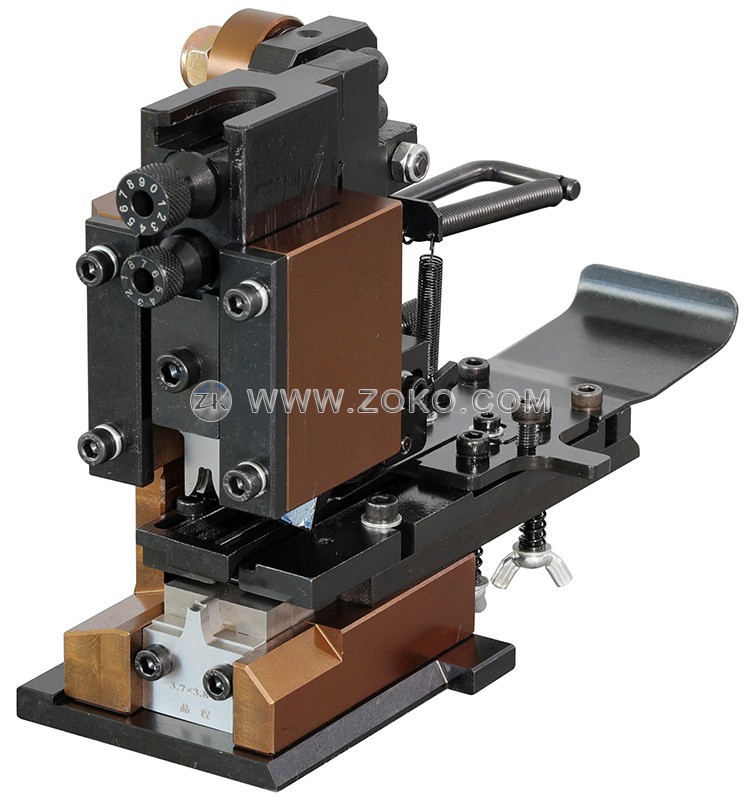

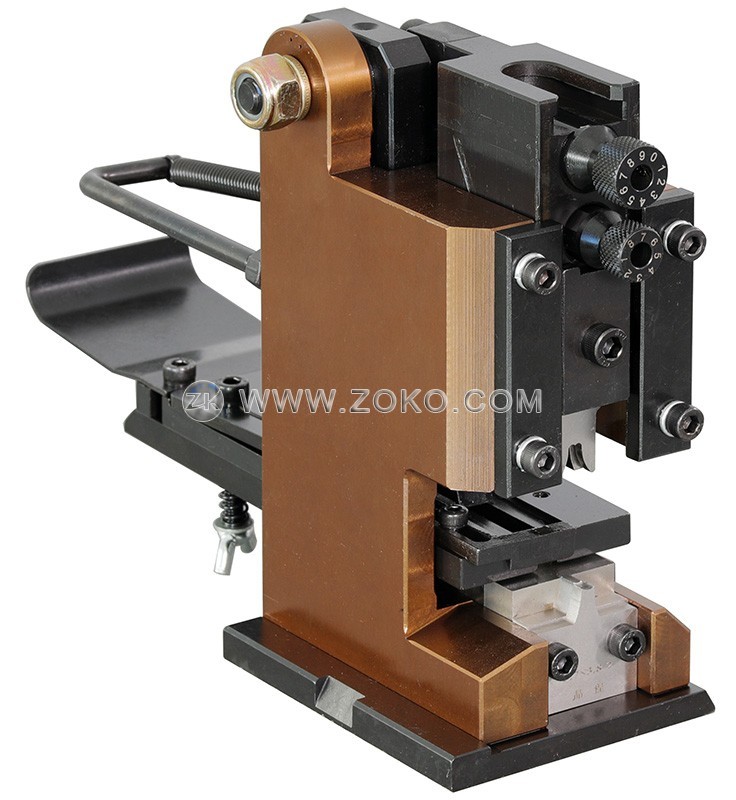

Crimp Applicator for End Feed Reeled Terminals

  • Model：KS-CM30R
  • Brand：KINGSING
  • Voltage：220V (Can be customized)
  • Function：
  • Price：
Online Inquiry

The crimping applicator with quick change system is made for crimping rear feed belted terminals on wires with cross sections up to 6mm2, it provides the most efficient method of applying chain terminals to a pre-stripped wire when installed in a semi-automatic or full-automatic terminal crimping machine.

Terminal Type: rear feed reeled terminals
Terminal Pitch: Max. 27mm
Terminal Thickness: 1.2mm
Feed Type: mechanical feed
Wire Cross Section: 10mm2 (AWG 8)
Press Stroke: 30mm
Crimping Height (Shut Height): 119.7mm
Crimp Height Adjustment: 0.01mm resolution, 2.7mm range
Net. Weight: 4.5Kg
Dimension: 225×85×165mm
