  3. Chinese 30mm Stroke

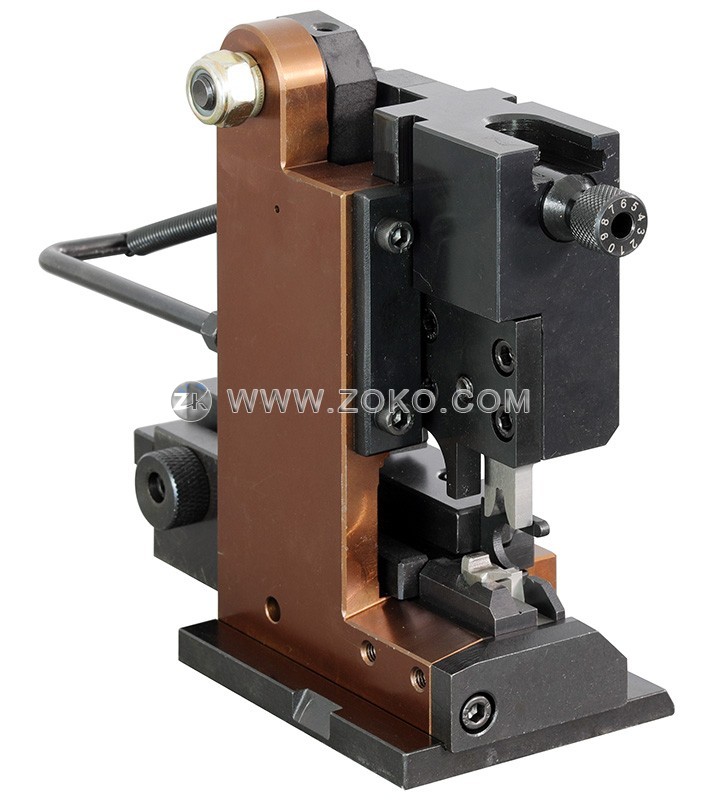

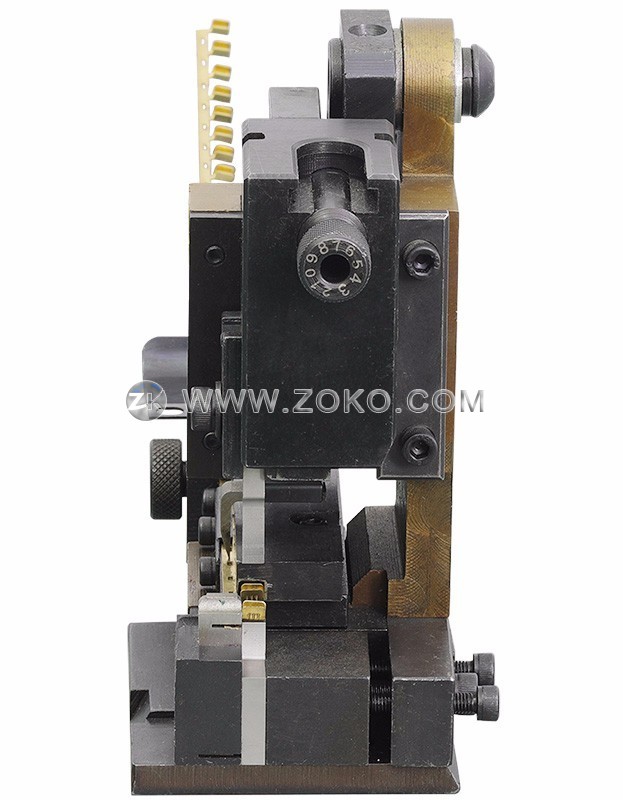

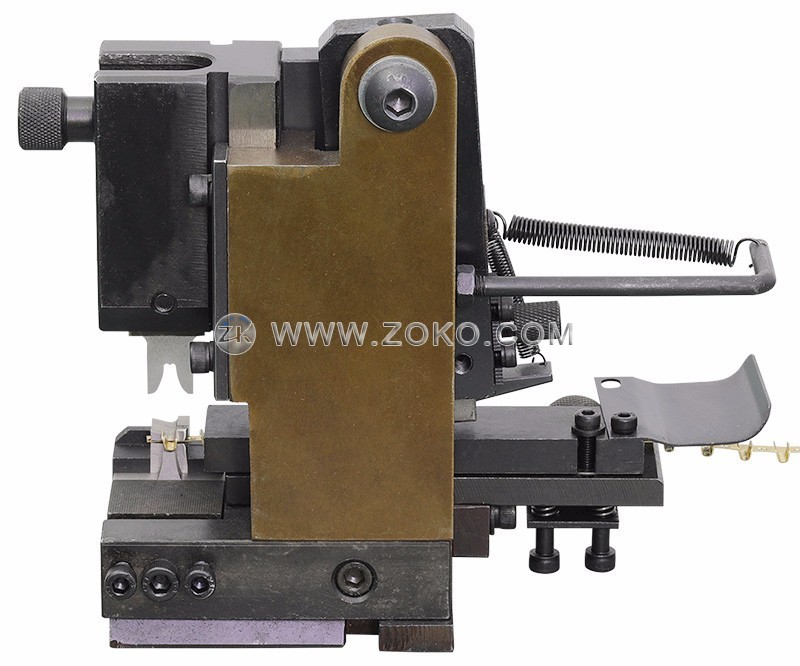

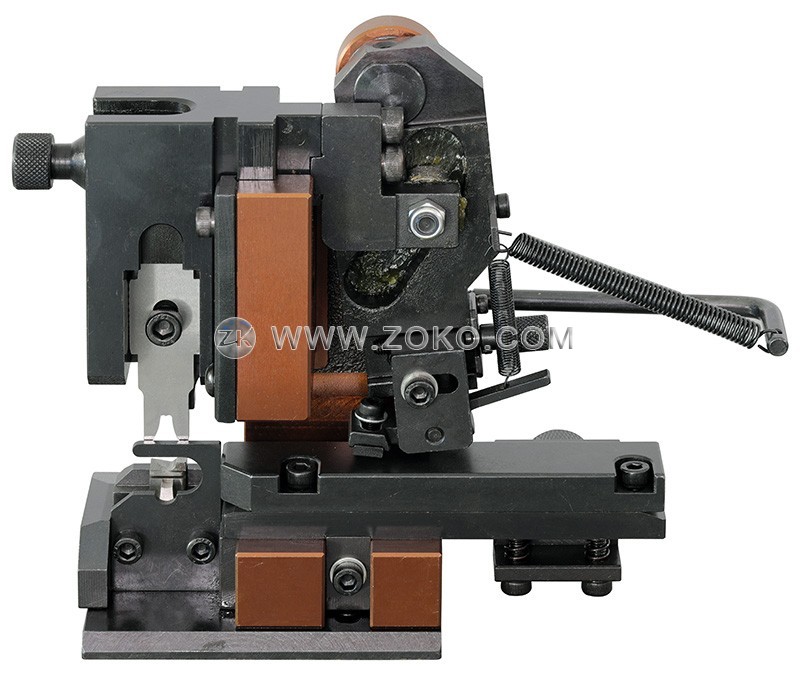

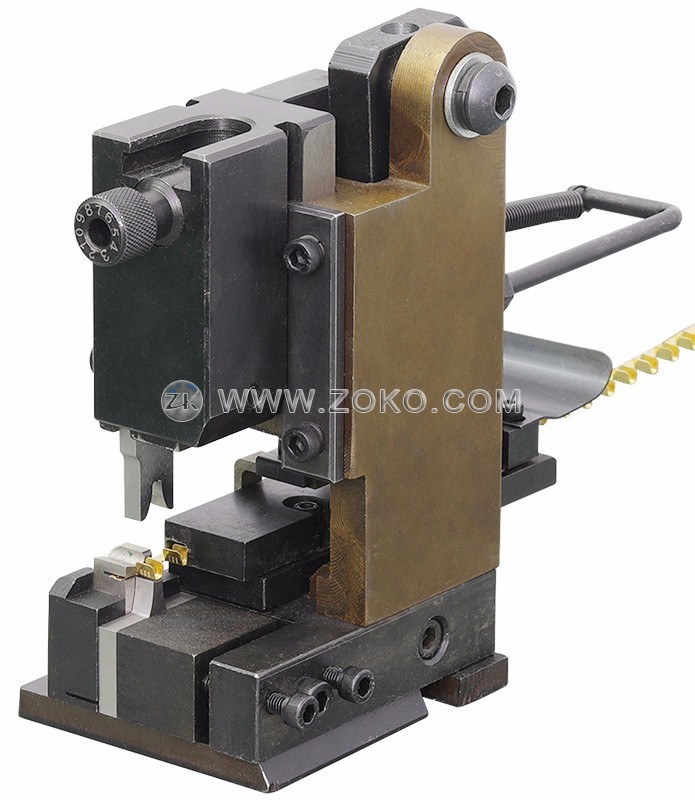

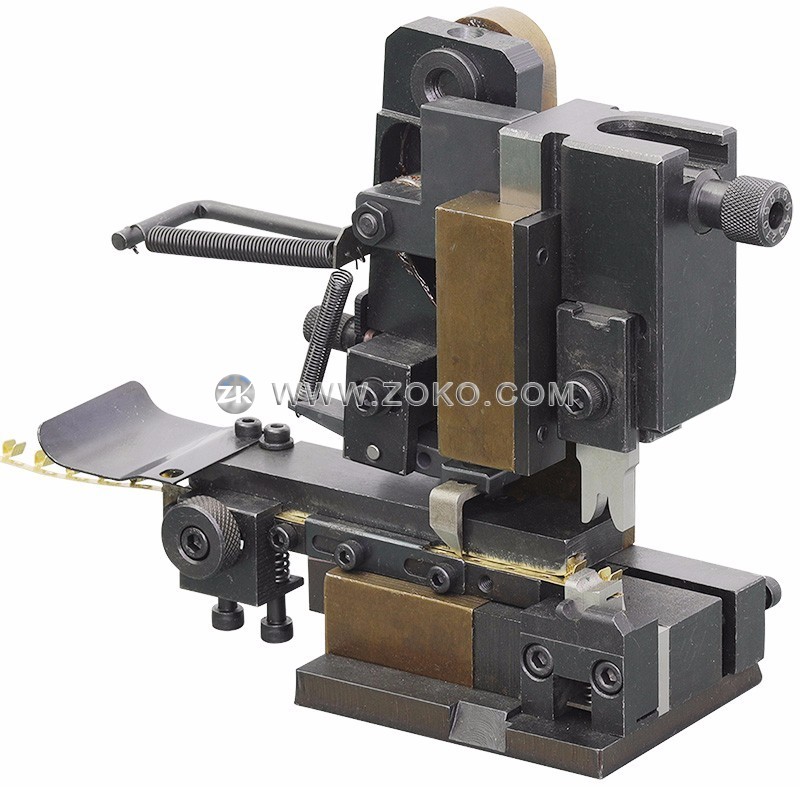

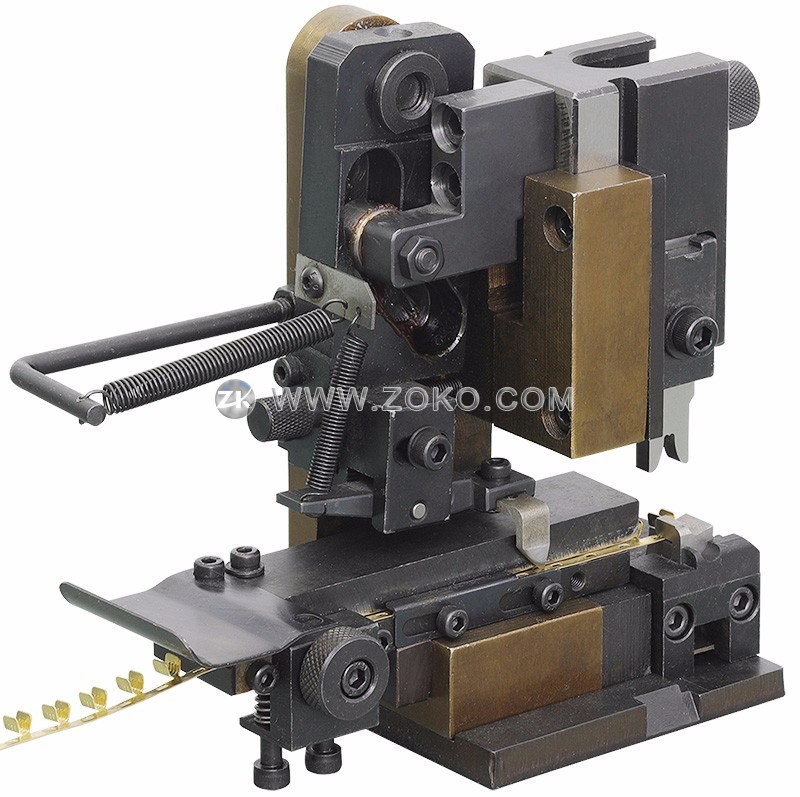

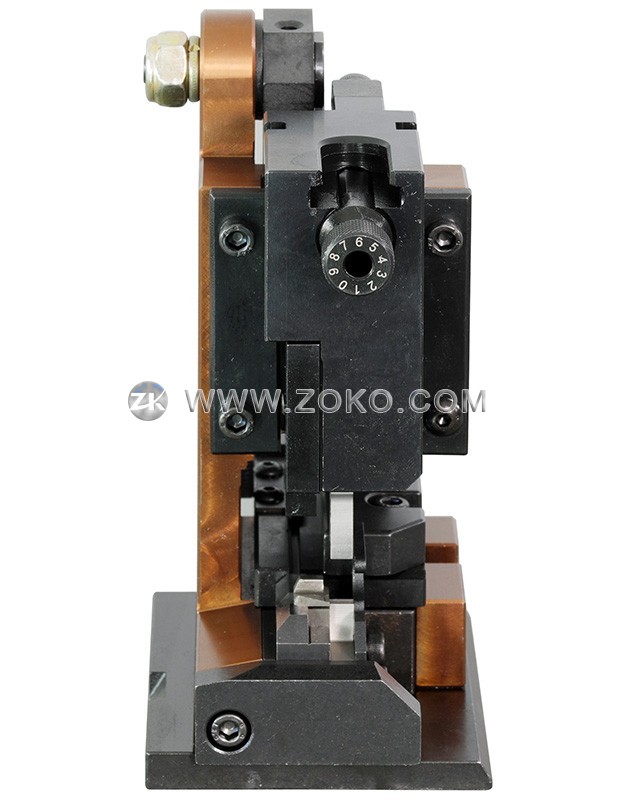

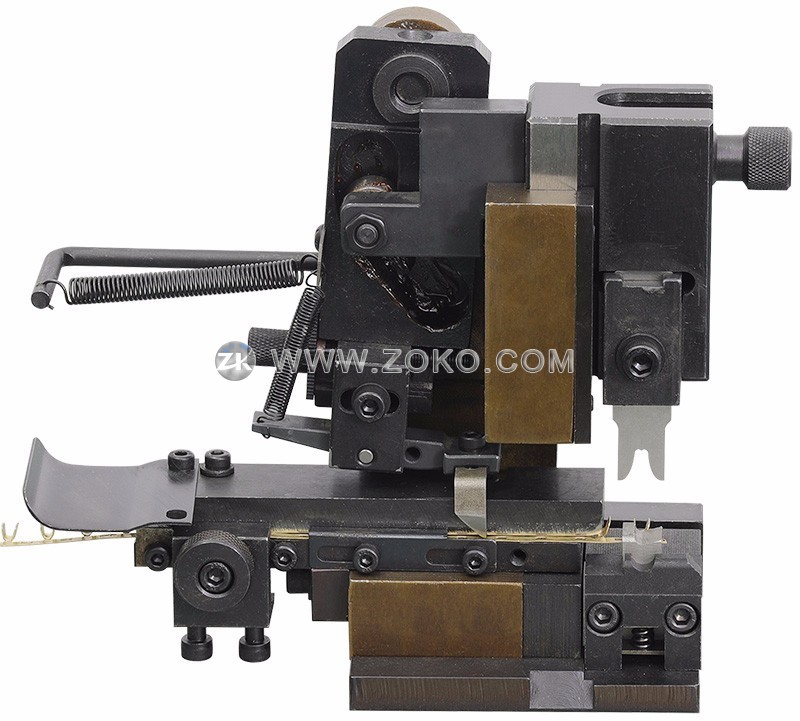

Crimp Applicator for Wire Splice Terminals

  • Model：KS-CM30U
  • Brand：KINGSING
  • Voltage：220V (Can be customized)
  • Function：
  • Price：
Online Inquiry

This terminal crimping applicator is especially designed for processing reeled wire splice terminals, wires can be placed from both left side and right side so that you can easily splice 2 wires together in on terminal. Rugged construction and simple set up to ensure long life and high quality.

Terminal Type: reeled wire splice terminals
Terminal Pitch: Max. 27mm
Terminal Thickness: 1.2mm
Feed Type: mechanical feed
Wire Cross Section: 10mm2 (AWG 8)
Press Stroke: 30mm
Crimping Height (Shut Height): 119.7mm
Crimp Height Adjustment: 0.01mm resolution, 2.7mm range
Net. Weight: 4Kg
Dimension: 185×80×165mm
